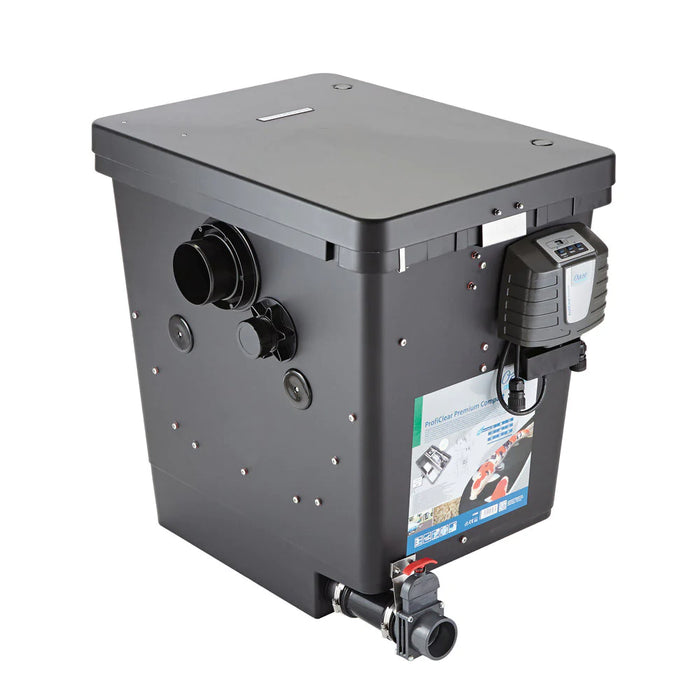

Oase ProfiClear Premium Compact-M Pump-Fed
Description
The full automatic compact-powerful alternative for stocked koi ponds.
The new generation compact drum filter of the ProfiClear Premium series is the more cost-effective alternative for bodies of water up to 80 m³. The compact module filter system is ideal for small koi ponds.
Leading koi experts confirm the optimal suitability of the ProfiClear Premium Compact. They were consulted in the development of the series. In the pumped principle the maximum water flow through the filter is 12,500 litres per hour. In the gravitation principle the maximum water flow through the filter is 16,500 litres per hour.
With this fully self-cleaning drum filter unit the moving bed system generates optimal water movement and cleaning. Deep-bed filtration of up to 80 microns and a new Hel-X 13 filter medium with a protected surface that has been enlarged by 14.5% relative to the predecessor product, ensure the high separation capacity.
Read More
Specs | ProfiClear Premium Compact-M Pump-Fed |
Dimensions | 34.8 x 27 x 32 in. |
Rated Voltage | 120V / 60 Hz |
Power consumption | 5 watts |
Power consumption cleaning | 870 watts |
Cable length 12V | 16.4 ft. + 3.3 unit |
Net weight | 175.3 lbs. |
Coarse debris extraction | 80 µm |
No. of nozzles / cleaning flow rate | 2 x 1 gal/min |
Cleaning Pump | 2 bar |
Biological filter surface | 411 ft.2 |
Biological filter surface protected | 347 ft.2 |
Min. Flow Rate | 2000 gph |
Max. Flow Rate | 4000 gph |
Outlet size | 4 in. (DN 110) |
Inlet size | 2 in. and UVC connection |
Sludge drain / Discharge size | 3 in. (DN 75) / 3 and 4 in. (DN 75/110) |
Suitable for ponds up to max. | 21000 gal |
Suitable for ponds with fish stock | 10500 gal |
Suitable for ponds with koi | 5250 gal |
Warranty | 2 years + 1 year with online registration |
